Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Suns
  • Model Number: SHS Controller-10
  • Application: Solar System Controller
  • Rated Voltage: 24V
  • Maximum Current: 10A
  • Item:: solar charge controller
  • PV panel:: 170W/12V, 340W/24V
  • Charge mode:: PWM
  • Display:: LED indicators
  • Load workmode:: ON/OFF or 24hrs ON
  • Terminals:: 4 mm2
  • Protection:: IP22
  • OEM/ODM:: Accept
  • Guarantee:: 2 years
  • Certificate:: CE,RoHS,ISO9001

Packaging & Delivery

Packaging Details: 1pc/color box, 50pcs/carton/004CBM, GW: 95kgs, NW: 8Kgs.
Delivery Detail: Shipped in 7 days after payment

solar charge controller

PWM 12V 24V 10A li-ion manual pwm solar charge controller With CE RoHS

Product Description



 Remarks

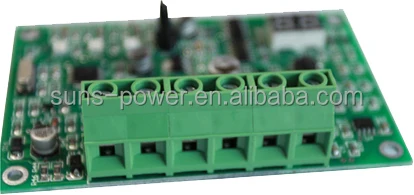

The SHS controller applies in solar photovoltaic systems, which coordinates the working of solar panels, batteries and loads. It adds some protection functions, so that the entire system can be in efficient and safe operation.This solar controller is designed for small solar home system and is suitable for solar systems of 300 Wp module output. This controller is thus especially suitable for lamps,radiosand a small televisions. All loads can be switched off using the manual load switch on the controller. the extremely low consumption makes the SHS controller suitable for profes-sional applications in telecommunications and traffic management technology.

The SunLight controller is designed for operating automatic night  light systems and is  suitable for  solar  systems of 300 Wp module output. the controller is thus especially suitable for street lights,bus stops,advertising lights and other similar applications. The charge controller will calculate the time and work as the timer you set.

Big terminals



Low Cost
SHS controller is specifically designed to meet the needs of the rural electrification market. The low cost resulted from using the latest electronic technology and high volume manufacturing

High Reliability
SUN'S is a dynamic manufacturer of solar charge controllers. All our controllers are designed for high quality and high reliability. This controller has a low failure rate and will last a long time, and got very good feedback from customers until now

Electronic protections
This controller has build-in electronic fused that do not require replacements

Tropicalization
SHS controller electronics are protected with moisture-tight coating(APL lacquer), minimizing damage from humidity and from nesting insects

Easy to use
The controller is fully automatic and requires no adjustments or user selections

Specifications

SUNS SHS controller

SHS Controller-10 12/24

12V

24V

Battery Voltage

12V

24V

Rated charge current

5A or 10A

Automatic load disconnect

Yes (maximum load 5A or 10A)

Recommended solar panel array

12V

24V

Maximum solar voltage

25V

55V

Self-consumption

6mA

Default settings



Absorption charge   (1)

14.4V

28.8V

Float charge   (1)

13.7V

27.4V

Load disconnect

11.1V

22.2V

Load reconnect

12,6V (manual)

25.2V (manual)

Battery temperature sensor

Yes (Internal sensor)

Temperature compensation

-30mV/°C

-60mV/°C

Protection class

IP20

Enclosure



Terminal size

6mm² / AWG10

Weight

160gr

Dimension (h x w x d)

mm

Mounting

Vertical wall mount       Indoor only

Humidity (non condensing)

Max. 95%

Operating temperature

-35°C to +55°C (full load)

Cooling

Natural convection

Standards



Safety

EN60335-1



EMC

EN61000-6-1, EN61000-6-3



Mechanical drawing
