PWM 12/24V 30A solar voltage controller with remote panel

FOB Reference Price:Get Latest Price
US $35-40 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
suns
Model Number:
suns
Application:
Solar System Controller
Rated Voltage:
12/24V auto
Maximum Current:
30A
Item::
Solar voltage controller
PV panel::
360W/12V, 720W/24V
Battery type::
Gel, sealed, flooded and User type
Grouding::
Positive grouding
Load control::
Manual, Light ON/OFF, Light ON+ Timer, Time Control
Comminication::
RS-485 bus communication
Enclosure::
IP30
Guarantee::
2 years
Certificate::
CE,RoHS,ISO9001
Supply Ability
Supply Ability:
5000 Unit/Units per Month as your need
Packaging & Delivery
Packaging Details
24pcs/carton,carton size:46*38*31cm,GW:19kg.
Port
Shenzhen
Lead Time :
7

Solar voltage controller

Product name: PWM 12/24V 30A solar voltage controller with remote panel

Model number: LS3024B

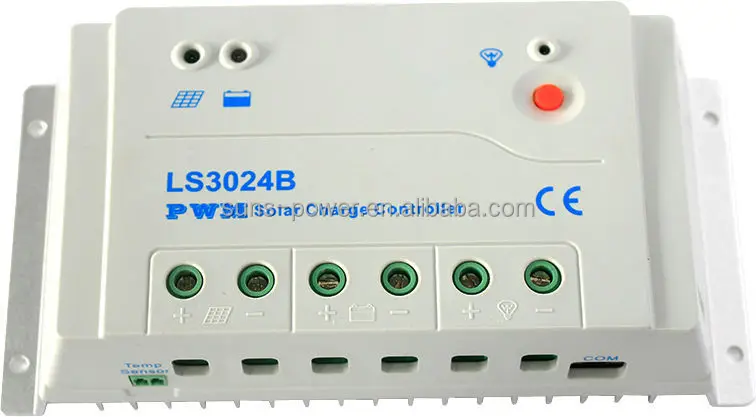

LS3024B-1

Options:

1.LS1024B, 12/24V, 10A(for both PV and loads)

2.LS2024B, 12/24V, 20A(for both PV and loads)

3.LS3024B, 12/24V, 30A(for both PV and loads)

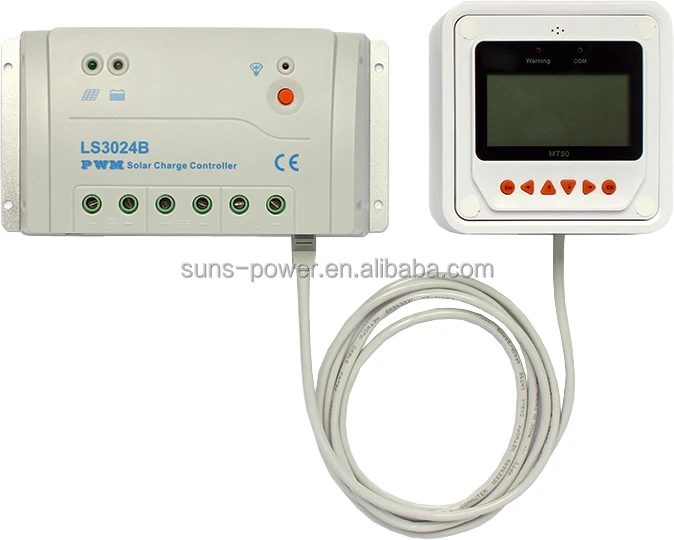

LS3024B-2

Remarks

This solar regulator is new generation programmable charge regulator. All the models adopt aluminum heat sink which enables the reliability in high temperature enviroments.RS-485 connects to a remote meter or PC for real-time monitoring, custom setting and control etc.

1   2



Application

    Solar home system

    Solar lighting system

    Solar road signals

    Solar surveillance

    Solar RVs and boats

    Small solar power station



Features

    1. Three system voltage configuration : 12V, 24V or 12V/24V auto work

    2. High efficiency PWM charging with temperature compensation

    3. 3 LEDs shows PV charging, battery and load status

    4. External temperature sensor interface

    5. RS-485 bus communication

    6. Open standard Modbus communication protocol

    7. Software update function

More powerful function via MT50 or PC

    1. Diversified load control modes : Manual, Light ON/OFF, Light ON+ Timer, Time Control

   2. Battery type selection: Gel, sealed, flooded and User type

   3. Real-time monitor

   4. Programmable parameters

   5. LVD or SOC load disconnect function

   6. Energy statistics function



Specifications

Model

LS1024B

LS2024B

LS3024B

Nominal System Voltage

12 / 24VDC

Rated Battery Current

10A

20A

30A

Maximum PV input voltage

50V

Grounding

Common Positive

Self-consumption

8.4mA(12V),7.8mA(24V)

Temp. Compensation

-3mV/℃/2V(25℃ ref)

Equalize Charging Voltage

Sealed: 14.6V, Flooded: 14.8V, User-defined: 9~17V

Boost Charging Voltage

Gel: 14.2V, Sealed: 14.6V, Flooded: 14.8V,

User-defined: 9~17V

Float Charging Voltage

Gel /Sealed /Flooded: 13.8V, User-defined: 9~17V

Low Voltage Reconnect Voltage

Gel /Sealed /Flooded: 12.6V, User-defined: 9~17V

Low Voltage Disconnect Voltage

Gel /Sealed /Flooded: 11.1V, User-defined: 9~17V

Technical data for 12V system at 25℃

Model

LS1024B

LS2024B

LS3024B

Dimension

138.6x69.3x37mm

159.6x81.4x47.8mm

200.6x101.3x57mm

Mounting holes

126mm

147x50mm

190x70mm

Terminal

4mm2

10mm2

10mm2

Net weight

0.13kg

0.3kg

0.5kg

Environmental Specification

Working temp.

-35℃~+55℃

Storage temp.

-35℃~+80℃

Humidity

≤95% (NC)

Enclosure

IP30

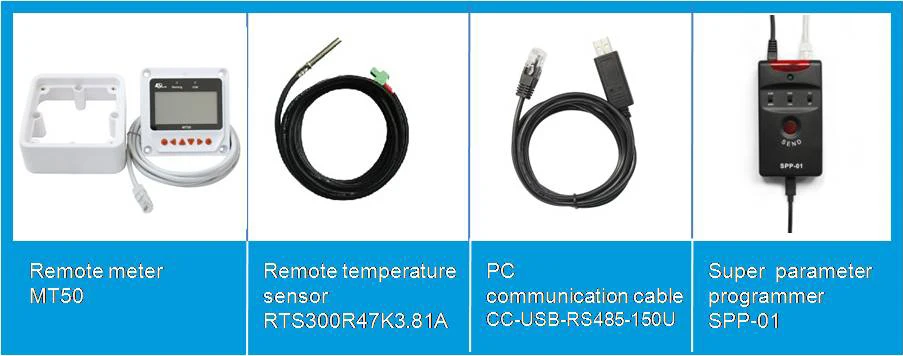

Optional accessories



For more information,please visit www.suns-power.com
